What Is a Centrifugal Blower Impeller?

A centrifugal blower impeller, also referred to as an impeller fan, blower impeller, or centrifugal fan impeller, is a rotating mechanical component responsible for moving air or gases in air handling and ventilation systems. It plays a crucial role in industrial ventilation, HVAC systems, cleanrooms, and other air management applications.

The impeller consists of a central hub with multiple blades (or vanes) arranged around it. When the blower impeller rotates, it draws air into the center (the eye) of the impeller and uses centrifugal force to fling the air outward through the tips of the blades. This outward motion increases the velocity and pressure of the air, generating a powerful and consistent airflow through the system.

The impeller blades are carefully designed in various configurations, such as forward-curved, backward-curved, or radial, to optimize airflow efficiency, static pressure, and noise levels based on the specific application. As a result, the centrifugal fan impeller ensures efficient air movement even in systems with high resistance or complex ductwork.

In essence, the centrifugal blower impeller converts mechanical energy into kinetic energy and pressure, making it a key component in systems requiring controlled air movement for cooling, exhaust, filtration, or ventilation.

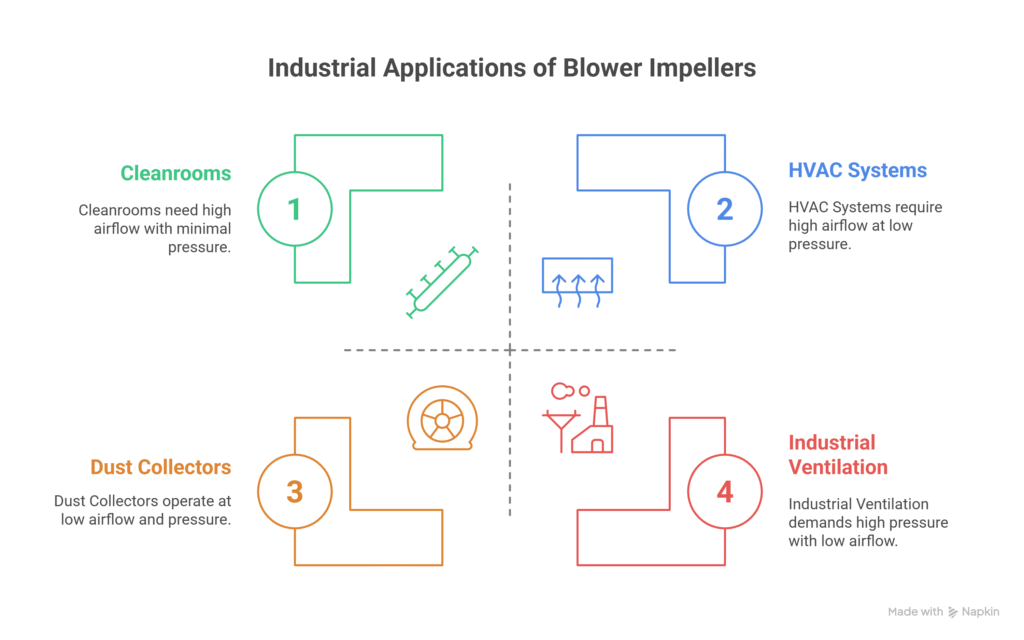

Industrial Applications of Blower Impellers

Blower impellers are essential components in a wide range of industrial systems where controlled airflow, pressure, and ventilation are critical. Depending on the impeller design, such as forward-curved, backward-curved, or radial, they serve specific needs across various industries. Here are the major applications:

1. HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, centrifugal fan impellers maintain airflow through ducts, filters, and cooling coils. Forward-curved impellers are often used due to their ability to move large volumes of air at low pressure, making them ideal for residential and commercial HVAC units.

2. Cleanrooms

Cleanroom environments in pharmaceuticals, electronics, and biotech rely on blower impellers to maintain laminar airflow and control contamination. Backward-curved impellers are preferred for their high efficiency and ability to operate under higher static pressures without compromising air purity.

3. Dust Collectors

In manufacturing and processing industries, centrifugal blower impellers play a vital role in dust collection systems by drawing in particulate-laden air and transporting it through filters or cyclones. Radial impellers, known for their ruggedness and resistance to clogging, are commonly used in these applications.

4. Industrial Ventilation

Factories, warehouses, and workshops use blower impellers in ventilation systems to extract hot air, fumes, smoke, and other airborne contaminants. High-pressure impellers, such as backward-inclined or radial designs, are suited for overcoming long duct runs and static resistance.

5. Vacuum Systems

In industrial vacuum systems, blower impellers create negative pressure to suction air and debris in processes like pneumatic conveying, packaging, and vacuum forming. Radial or backward-curved impellers are used here due to their ability to generate strong suction and maintain consistent airflow.

Types of Centrifugal Blower Impellers

Centrifugal blower impellers come in various designs, each optimized for specific performance characteristics such as airflow volume, pressure, and resistance handling. Choosing the right fan impeller type is critical for achieving efficiency and reliability in air handling systems. Below is a detailed breakdown of the most common blower fan impeller types used in industrial applications.

Summary Table of Fan Impeller Types

Type	Best For	Pressure	Efficiency	Airflow	Durability
Forward Curved	Low-pressure HVAC	Low	Medium	High	Moderate
Backward Curved	Industrial ventilation	Medium-High	High	Medium	High
Radial	Dusty, harsh environments	High	Medium	Medium	Very High
Ring Blower Impellers	Clean, oil-free applications	Medium	High	Medium	High
Motorized Impellers	Compact, silent systems	Low-Medium	Medium	Low-Medium	Moderate

1. Forward Curved Impellers

Working Principle:
These blower fan impellers feature numerous small blades curved in the direction of rotation. As the impeller spins, it draws air into the center and accelerates it outward using centrifugal force.

Ideal Applications:

• HVAC systems
• Residential and light commercial ventilation
• Low-pressure ducted systems


Pros:

• High airflow at low static pressure
• Compact and quiet operation
• Cost-effective design


Cons:

• Lower efficiency compared to backward-curved designs
• Not suitable for high-pressure systems
• Prone to dust accumulation due to close blade spacing


2. Backward Curved Impellers

Working Principle:
Blades curve opposite to the direction of rotation. These industrial blower fan impellers provide higher pressure and efficiency, with air moving smoothly through the impeller with minimal turbulence.

Ideal Applications:

• Industrial ventilation
• Cleanroom air systems
• Medium to high-pressure applications


Pros:

• High efficiency and energy savings
• Better performance under higher resistance
• Less prone to clogging


Cons:

• More expensive than forward-curved types
• Slightly higher noise levels


3. Radial Impellers

Working Principle:
These impellers have straight blades radiating outward. They operate by throwing air directly out from the center at a 90-degree angle, making them robust and ideal for handling particulate-laden air.

Ideal Applications:

• Dust collectors
• Material handling
• Vacuum systems


Pros:

• Strong build for harsh environments
• Handles dust and debris well
• High static pressure capability


Cons:

• Lower airflow efficiency
• Louder operation
• Larger footprint


4. Ring Blower Impellers

Working Principle:
Also known as side-channel blowers, these impellers work by creating a vortex in a ring-shaped chamber. Air is accelerated multiple times within the chamber, producing steady flow and moderate pressure.

Ideal Applications:

• Aquaculture aeration
• Pneumatic conveying
• Laboratory equipment


Pros:

• Oil-free, maintenance-friendly design
• Continuous, pulsation-free airflow
• Compact and lightweight


Cons:

• Lower pressure compared to traditional centrifugal impellers
• Not ideal for high-volume air movement


5. Motorized Impellers

Working Principle:
These impellers have the motor integrated directly into the hub, resulting in a compact, all-in-one assembly. They are commonly used in electronics cooling and compact air-moving devices.

Ideal Applications:

• Electronics cooling
• Compact HVAC units
• Cleanroom modules


Pros:

• Space-saving design
• Easy installation
• Quiet and vibration-free operation


Cons:

• Limited customization
• Typically lower power ratings
• Higher initial cost for high-end models


Choosing the Right Fan Impeller for Your Industry

Selecting the right industrial fan impeller is critical to achieving optimal airflow, energy efficiency, and system longevity. Whether you’re sourcing a blower motor impeller for a dust-laden manufacturing plant or a motorized impeller fan for a cleanroom, the choice must be guided by your application’s specific requirements.

Here’s a practical checklist to help you choose the ideal impeller for your industrial setup:

1. Determine Airflow Requirements

• CFM (Cubic Feet per Minute): Calculate the volume of air your system must move.

• Static Pressure: Understand how much resistance the air must overcome in ductwork or filters.

• Flow Type: Choose between high-volume, low-pressure (e.g., forward-curved impellers) or low-volume, high-pressure systems (e.g., radial impellers).


Key Tip: For high-resistance applications, go with backward-curved or radial industrial fan impellers.

2. Match with Motor Specifications

• Check blower motor impeller compatibility, motor power (HP/kW), speed (RPM), and voltage.

• For compact systems or space-constrained environments, consider a motorized impeller fan with integrated drive and impeller.


Key Tip: Ensure the impeller’s load characteristics match the motor’s torque and efficiency curve to avoid overheating or mechanical failure.

3. Analyze Operating Conditions

• Dusty Air: Use radial or open-blade designs that resist clogging.

• High Temperatures: Choose materials and coatings that withstand heat without deforming.

• Chemical Exposure: Select corrosion-resistant impellers for aggressive environments.


Key Tip: For harsh and dusty environments, radial impellers made from PPFRP or FRP are ideal due to their resistance to corrosion and wear.

4. Select the Right Material

Material choice affects both performance and durability. Here’s a breakdown:

Material	Best For	Advantages
SS (Stainless Steel)	Food, pharma, chemical industries	High strength, corrosion resistance
FRP (Fiberglass Reinforced Plastic)	Corrosive environments	Lightweight, corrosion-resistant
PPFRP (Polypropylene FRP)	Acidic, chemical exhausts	High chemical resistance
GI (Galvanized Iron)	General ventilation	Economical, suitable for mild environments

Key Tip: Choose SS impellers for hygienic or heat-sensitive operations; FRP/PPFRP for chemical plants; GI for general-purpose use.

5. Assess System Integration

• Ductwork Compatibility: Ensure impeller dimensions fit within your system’s airflow path.

• Mounting & Access: Factor in ease of installation and maintenance access.


Key Tip: Opt for modular blower motor impeller designs if regular maintenance or part replacement is expected.

6. Consider Efficiency and Noise Levels

• Look for energy-efficient impeller designs (e.g., backward-curved) to reduce power costs.

• For noise-sensitive environments, choose impellers with low decibel ratings and aerodynamic blade designs.


Centrifugal Fan Impeller Wheels – Explained

Centrifugal fan impeller wheels are at the heart of air-moving equipment used in industrial systems, HVAC, cleanrooms, and ventilation setups. Their mechanical design directly affects airflow capacity, pressure generation, and energy efficiency. Understanding the structural elements of an impeller centrifugal fan helps engineers and operators make better decisions regarding performance tuning, reliability, and application fit.

Key Components & Mechanics of a Centrifugal Fan Impeller Wheel

1. Diameter of the Impeller Wheel

• Impact: A larger impeller centrifugal fan diameter increases the tip speed and centrifugal force, enhancing the pressure and airflow generated.

• Design Insight: For applications requiring high static pressure (e.g., dust collectors, long duct runs), larger diameters are preferred.


Pro Tip: Oversized impellers can lead to motor overload. Always match wheel size with your motor impeller fan rating.

2. Number of Blades

• Impact: The number of blades affects both the volume of air moved and the overall stability of the airflow.

  • More blades: Higher airflow but potentially more drag.

  • Fewer blades: Lower resistance, better for particulate-heavy environments.


Common Blade Counts:

• Forward-curved wheels: 32–64 blades

• Backward-curved wheels: 6–16 blades

• Radial blades: 8–12 robust, straight blades


Pro Tip: Fewer, thicker blades are ideal for high-dust or abrasive air streams, ensuring longer service life.

3. Blade Angles & Orientation

• Forward Curved: High volume, low pressure; commonly used in low-resistance HVAC systems.

• Backward Curved: High pressure, energy-efficient; suited for industrial air movement.

• Radial (Straight Blades): Excellent for material handling, dust-laden air.


Impact on Performance:

• Blade angle influences how the air exits the wheel.

• Steeper angles generate more pressure but may require stronger motors.


Pro Tip: The blade angle must be chosen based on both motor impeller fan capacity and system resistance.

4. Balancing of the Impeller Wheel

• Why It Matters: Imbalance leads to vibration, noise, wear, and premature failure of bearings and motor shafts.

• Types of Balancing:

  • Static Balancing: Ensures the impeller remains stationary at any position.

  • Dynamic Balancing: Adjusts the wheel while rotating at operational speeds, critical for high-RPM applications.


Pro Tip: Precision-balanced centrifugal fan impeller wheels reduce energy consumption and improve operational stability.

Summary of Design Factors and Their Effects

Design Factor	Influence on Performance
Impeller Diameter	Higher airflow and pressure; must match motor capacity
Blade Count	More blades = smoother airflow; fewer blades = better for particulates
Blade Angle	Determines pressure vs. airflow balance
Balancing Type	Impacts noise, vibration, and longevity

---

Dust Collector Motor and Impeller Design Insights

Designing an efficient dust collector motor and impeller setup requires a deep understanding of how air volume, filtration resistance, and particulate characteristics interact. The dust collector blower impeller must handle large dust loads without clogging, all while maintaining strong airflow and static pressure.

Here’s a breakdown of key design factors for air blower impellers used in dust collection systems:

1. Air-to-Cloth Ratio and Its Impact

• Definition: The air-to-cloth ratio is the volume of air (CFM) passing through a square foot of filter media.

• Why it Matters: A high air-to-cloth ratio can lead to filter clogging, whereas too low a ratio causes inefficient airflow.


Recommended Range:

• General industrial use: 4:1 to 6:1

• Fine dust or toxic materials: 2:1 to 3:1


 A properly sized dust collector blower impeller must match the filtration system’s optimal air-to-cloth ratio to maintain efficiency without overloading.

2. Static Pressure Considerations

• Dust collection systems often require high static pressure to overcome resistance from filters, ducts, and dust separation chambers.

• Impeller Design Focus: The impeller should produce sufficient static pressure (measured in inches of water gauge) to sustain flow under load.


Ideal Configuration:

• Backward-curved impellers are preferred due to their high efficiency and pressure capability.


Key Insight: The dust collector motor and impeller must work together to maintain peak performance even as filters get dirty and resistance increases.

3. Blade Design – Backward Curved for Efficiency

• Backward-curved impellers are ideal for dust collection:

  • They offer high static pressure.

  • Less prone to dust build-up compared to forward-curved types.

  • Operate at higher efficiency with lower energy consumption.

• Radial impellers (with straight blades) may also be used in heavy-duty systems where abrasive dust is present, as they resist clogging and are easy to clean.


Comparison Table:

Impeller Type	Best For	Pros	Cons
Backward-Curved	General dust collectors	High efficiency, low noise	Less ideal for highly abrasive dust
Radial (Straight Blade)	Abrasive or sticky dust loads	Clog-resistant, durable	Less efficient, noisier
	General dust collectors	High efficiency, low noise	Less ideal for highly abrasive dust

4. Durability Under Heavy Dust Load

• Material Selection:

  • Use abrasion-resistant steel or stainless steel for harsh environments.

  • For corrosive dust, FRP or PPFRP impellers are excellent.

• Construction Considerations:

  • Welded, reinforced blades and heavy-duty hubs.

  • Protective coatings to resist chemical attack or erosion.


Design Tip: A durable air blower impeller ensures longer service intervals and reduced downtime in dust-heavy industrial environments.

5. Motor & Drive System Compatibility

• Choose motors with appropriate torque and horsepower to handle the static load and potential buildup of particulate on blades.

• Direct drive systems are preferred for compact setups, while belt-driven systems offer flexibility for large-scale industrial dust collectors.


How to Evaluate Blower Impeller Price and Quality

When choosing the right industrial blower impeller, pricing can vary significantly depending on several key factors. Understanding what influences the blower impeller price and how to assess the quality will help you make a cost-effective and reliable purchase decision.

What Affects Blower Impeller Price?

1. Material Composition

   • SS (Stainless Steel): Corrosion-resistant, durable – higher cost.

   • FRP / PPFRP: Lightweight, chemical-resistant – mid-range cost.

   • GI (Galvanized Iron): Cost-effective for general use – lower cost.

2. Size and Capacity

   • Larger impellers (in terms of diameter and blade count) used for high-volume airflow systems typically cost more.

   • Higher static pressure requirements may also raise the price due to the need for reinforced construction.

3. Performance Specifications

   • Efficiency rating, blade design (forward curved, backward curved, radial), RPM compatibility, and static pressure handling capacity all influence the price.

   • Custom impellers for specialized systems like dust collectors, cleanrooms, or high-temperature environments also demand premium pricing.

4. Brand and Manufacturing Standards

   • Well-established brands that follow ISO/AMCA standards command higher prices due to proven reliability.

   • Local or unbranded manufacturers may offer lower prices but lack consistency in quality control.


How to Assess Blower Impeller Quality

1. Build Quality & Finishing

   • Look for smooth blade edges, uniform welding (for metal impellers), and durable coatings for corrosion resistance.

   • Impellers should be dynamically balanced to reduce vibration and ensure long-term performance.

2. Material Suitability for Your Environment

   • For chemical plants, opt for PPFRP or FRP.

   • For dusty or abrasive settings, SS or hard-coated GI is ideal.

3. Blade Design Efficiency

   • Backward curved impellers = high efficiency + low noise.

   • Radial impellers = heavy-duty dust and particle resistance.

   • Choose the design that matches your airflow and pressure requirements.

4. Warranty & After-Sales Support

   • A solid warranty and service promise from the supplier indicate confidence in quality and provide peace of mind.


OEM vs Aftermarket: Which One to Choose?

Factor	OEM (Original Equipment Manufacturer)	Aftermarket
Fit & Compatibility	Guaranteed for original systems	May need customization
Quality Assurance	High (typically tested by equipment manufacturers)	Varies widely – check supplier credentials
Price	Usually higher	Lower, but quality can vary
Availability	Longer lead times possible	Faster delivery from local vendors
Support & Warranty	Strong technical and service backing	Depends on supplier

Need Guidance? Contact Enviagurd

If you’re unsure which blower impeller type best suits your industrial setup, or want to compare the blower impeller price based on specs and material, Enviagurd offers expert consulting and customized solutions tailored to:

• HVAC systems

• Dust collection units

• Cleanroom operations

• Industrial ventilation


Reach out to Enviagurd today for the right industrial blower impeller recommendation that balances cost, quality, and performance.

Let performance and durability drive your choice ,  not just price.

Key Considerations When Replacing an Industrial Blower Impeller

Replacing an industrial blower impeller fan isn’t just a parts swap, it’s a precision decision that impacts system performance, energy efficiency, and safety. Whether it’s routine maintenance or a system upgrade, plant and maintenance engineers should follow a structured checklist before selecting a replacement motor impeller fan or vacuum impeller fan.

1. Ensure Compatibility with Existing System Specs

• RPM Rating: The new impeller must match the motor’s speed. Mismatched RPMs can lead to vibration, inefficiency, or mechanical failure.

• Motor Power and Shaft Size: Check compatibility with your current motor (e.g., kW/HP, shaft diameter, mounting type).

• Drive Type: Is it a direct drive or belt drive? The impeller design should suit the existing transmission method.


2. Match Airflow and Static Pressure Requirements

• Airflow (CFM): Choose a blower impeller that maintains or improves your system’s designed airflow. Undersized or oversized airflow can hinder equipment performance or create turbulence.

• Static Pressure: Especially crucial in vacuum impeller fan and dust collection systems. The wrong static pressure rating can reduce filtration effectiveness or overload the motor.

3. Noise and Vibration Performance

• Blade Design:

  • Backward curved: Quieter and more energy-efficient.

  • Forward curved or radial: Louder but suitable for high-resistance applications.

• Dynamic Balancing: Replacing the impeller with a poorly balanced one can cause vibration, noise, and bearing wear.

4. Ease of Maintenance and Access

• Cleaning & Inspection: In dusty or corrosive environments, opt for impellers with self-cleaning blade designs or quick-access mounts.

• Durability: Choose materials like FRP, PPFRP, GI, or SS based on exposure to dust, chemicals, or high temperatures.


5. Consider Upgrading to Motorized Impeller Fans

• Motorized impeller fans integrate the motor and impeller into a single compact unit.

  • Great for tight spaces

  • Simplifies installation

  • Ideal for cleanrooms, electronics cooling, and compact HVAC systems

Summary Checklist for Impeller Replacement:

Factor	What to Check
RPM and motor specs	Match RPM, motor power, and mounting type
Airflow & static pressure	Align with system design needs
Blade design	Optimize for noise, performance, or cleaning
Material	SS, GI, FRP, or PPFRP based on use case
Balance & quality	Confirm dynamic balancing to reduce vibration
Installation fit	Shaft size, hub bore, and rotation direction
Maintenance accessibility	Favor easy removal, inspection, and cleaning

Need Help with Impeller Replacement?

Enviagurd specializes in custom blower impeller fan solutions tailored for:

• Industrial ventilation

• HVAC systems

• Vacuum and dust collection systems

• Cleanroom operations


Contact Enviagurd to get expert guidance on selecting or replacing your motor impeller fan or vacuum impeller fan with precision-engineered, performance-optimized components.

FAQ About Centrifugal Blower Impeller

Q1: What is the difference between a fan impeller and a blower impeller?
A fan impeller typically moves air at lower pressure and higher volume, ideal for ventilation. A blower impeller generates higher pressure airflow, suitable for applications requiring forced air through ducts or filters. Blower impellers often have more robust designs to handle tougher industrial conditions.

Q2: Which type of centrifugal fan impeller is best for dust collection?
Radial and backward curved impellers are preferred for dust collection. Radial impellers handle abrasive particles well due to their sturdy blades, while backward curved impellers offer high efficiency and durability under heavy dust load with lower noise.

Q3: What are the common materials used in blower impellers?
Blower impellers are commonly made from stainless steel (SS) for corrosion resistance, galvanized iron (GI) for cost-effectiveness, and FRP or PPFRP for chemical resistance and lightweight applications, depending on the industrial environment.

Q4: How does a backward curved impeller fan improve efficiency?
Backward curved impellers reduce airflow turbulence and operate at lower speeds, which decreases energy consumption and noise. Their design allows for higher static pressure and better handling of dust-laden air, improving overall system efficiency.

Q5: What are the advantages of motorized impeller fans?
Motorized impeller fans combine the motor and impeller into a compact unit, offering space-saving installation, reduced vibration, and simplified maintenance. They deliver precise airflow control and are ideal for tight industrial spaces and cleanroom environments.
